Belt Conveyor
Engineered for Maximum Tonnage • Built to Last
Heavy-duty industrial crushing and material handling system designed for high reduction ratios, maximum continuous uptime, and reliable operating efficiency in extreme quarry conditions.
ENGINEERED FOR PRECISION, CONTINUOUS TONNAGE & HEAVY DUTY LIFE
The Belt conveyor is a mechanical material handling equipment that moves materials and products from a point and a level to another. Its maintenance is easy and is generally associated with size reduction equipment. Most of the conveying of the materials is handled by the belt conveyor as it is the most suitable equipment for material transfer. Mewar Hitech offers a wide range of belt conveyors and portable conveyors. Our equipment is ideal for all regular crushing plants and mobile crushing units. The conveyors are designed according to operations, such as transportation, accumulation and sorting, the material sizes, weights and shapes and where the loading and pickup points need to be.
Core Design Highlights & Mechanisms:

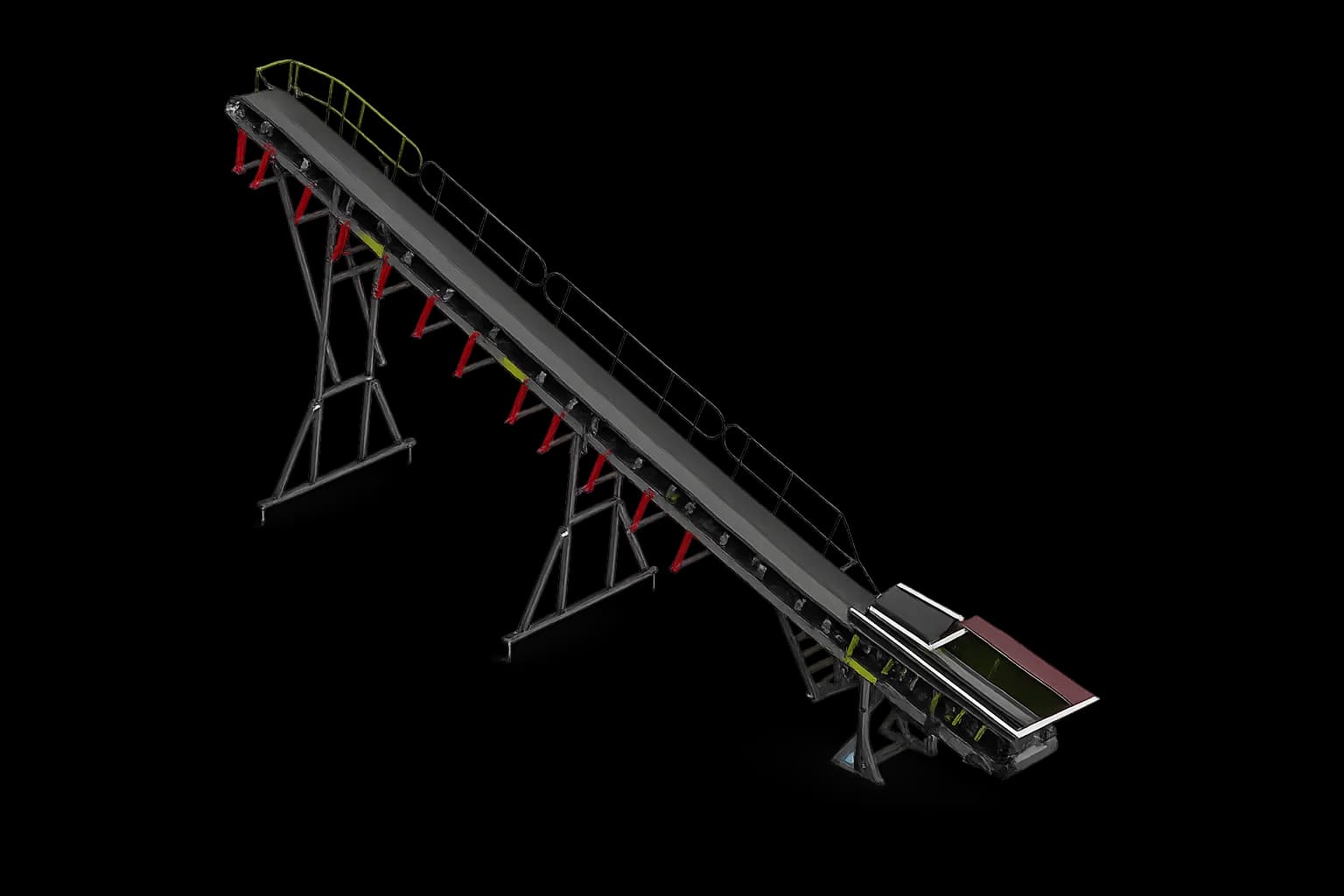

Belt Conveyor
Rotate 360° • Zoom • Inspect
VERSATILE INDUSTRIAL OPERATING ENVIRONMENTS
Designed to operate under extreme crushing forces across diverse mineral processing sectors.
ON-SITE INSPECTION & WORKING VIDEO
MACHINE SPECIFICATIONS & TONNAGE CHART
Detailed dimensional, power, and capacity metrics for model selection.
| Belt Width (mm) | Conveyor Speed (m/s) | Trough Angle | Drive Type | Max Capacity (TPH) |
|---|---|---|---|---|
| • Technical Specifications | ||||
| 500 mm | 1.25 | 30 deg | Gear Motor | 80 TPH |
| 650 mm | 1.6 | 35 deg | Pulley / Motor | 150 TPH |
| 800 mm | 2.0 | 35 deg | Snub Pulley Setup | 300 TPH |
DOWNLOAD PRODUCT BROCHURES & LAYOUTS
REQUEST PRICING & CUSTOM FLOWSHEET DESIGN
Interested in integrating the Belt Conveyor into your crushing plant? Submit your application requirements below.
