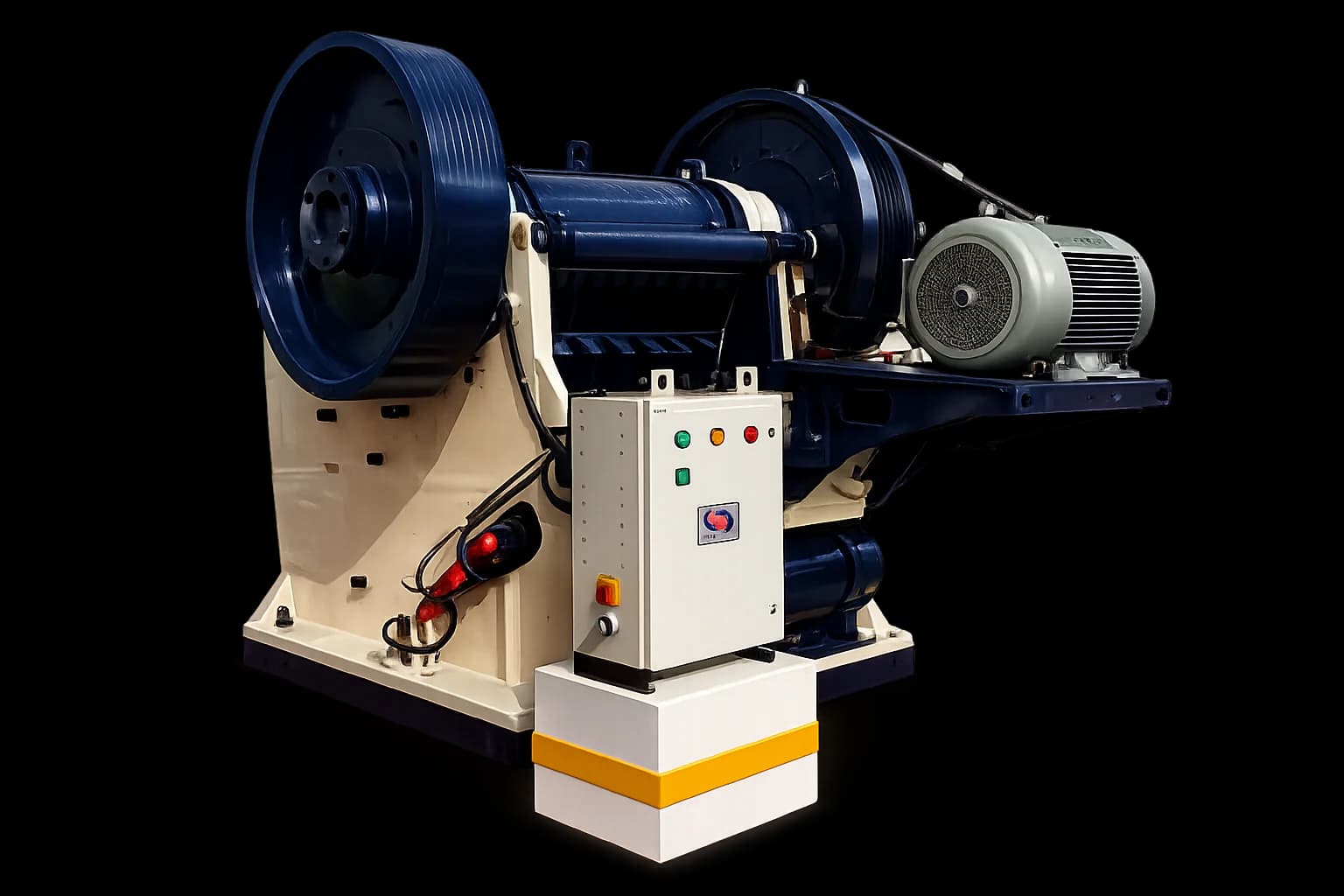

Single Toggle Grease Jaw Crusher
Engineered for Maximum Tonnage • Built to Last
Heavy-duty industrial crushing and material handling system designed for high reduction ratios, maximum continuous uptime, and reliable operating efficiency in extreme quarry conditions.
ENGINEERED FOR PRECISION, CONTINUOUS TONNAGE & HEAVY DUTY LIFE
Kingson's Single Toggle Grease Jaw Crusher is usually utilized where size conveyance isn't of fundamental significance, be that as it may, efficiency is to be increased with lower power utilization, in contrast with Double Toggle Grease Lubricated Jaw Crusher and hence working expense is lower. These do not require high operating skills and gap setting is easier and manageable. Additionally, the support necessity is much lower and it doesn't require high maintenance.
Core Design Highlights & Mechanisms:
Single Toggle Grease Jaw Crusher
Rotate 360° • Zoom • Inspect
VERSATILE INDUSTRIAL OPERATING ENVIRONMENTS
Designed to operate under extreme crushing forces across diverse mineral processing sectors.
ON-SITE INSPECTION & WORKING VIDEO
MACHINE SPECIFICATIONS & TONNAGE CHART
Detailed dimensional, power, and capacity metrics for model selection.
| S.No | Size (Inch) | Size (MM) | Rec. Feed (mm) | Gape (mm) | Capacity CSS Options (TPH) | RPM | Power (HP) | Weight (Tons) |
|---|---|---|---|---|---|---|---|---|
| • Technical Specifications | ||||||||
| 1 | 16"x10" | 400x250 | 200 | 6 | 1.0": 10 | 1.25": 15 | 1.50": 18 | 2.0": 25 | 330 | 25 | 3.2 |
| 2 | 20"x12" | 500x300 | 270 | 8 | 1.25": 15 | 1.50": 22 | 2.0": 28 | 2.50": 35 | 320 | 30 | 4.8 |
| 3 | 30"x15" | 750x375 | 320 | 11 | 1.50": 30 | 2.0": 45 | 2.50": 60 | 3.0": 75 | 300 | 50 | 8.5 |
| 4 | 36"x24" | 900x600 | 500 | 13 | 2.0": 60 | 2.50": 80 | 3.00": 100 | 4.0": 120 | 285 | 75 | 14.5 |
| 5 | 42"x30" | 1050x750 | 650 | 17 | 3.0": 90 | 4.00": 120 | 5.00": 150 | 6.0": 180 | 250 | 125 | 23.0 |
DOWNLOAD PRODUCT BROCHURES & LAYOUTS
REQUEST PRICING & CUSTOM FLOWSHEET DESIGN
Interested in integrating the Single Toggle Grease Jaw Crusher into your crushing plant? Submit your application requirements below.
