Sand Washer
Engineered for Maximum Tonnage • Built to Last
Heavy-duty industrial crushing and material handling system designed for high reduction ratios, maximum continuous uptime, and reliable operating efficiency in extreme quarry conditions.
ENGINEERED FOR PRECISION, CONTINUOUS TONNAGE & HEAVY DUTY LIFE

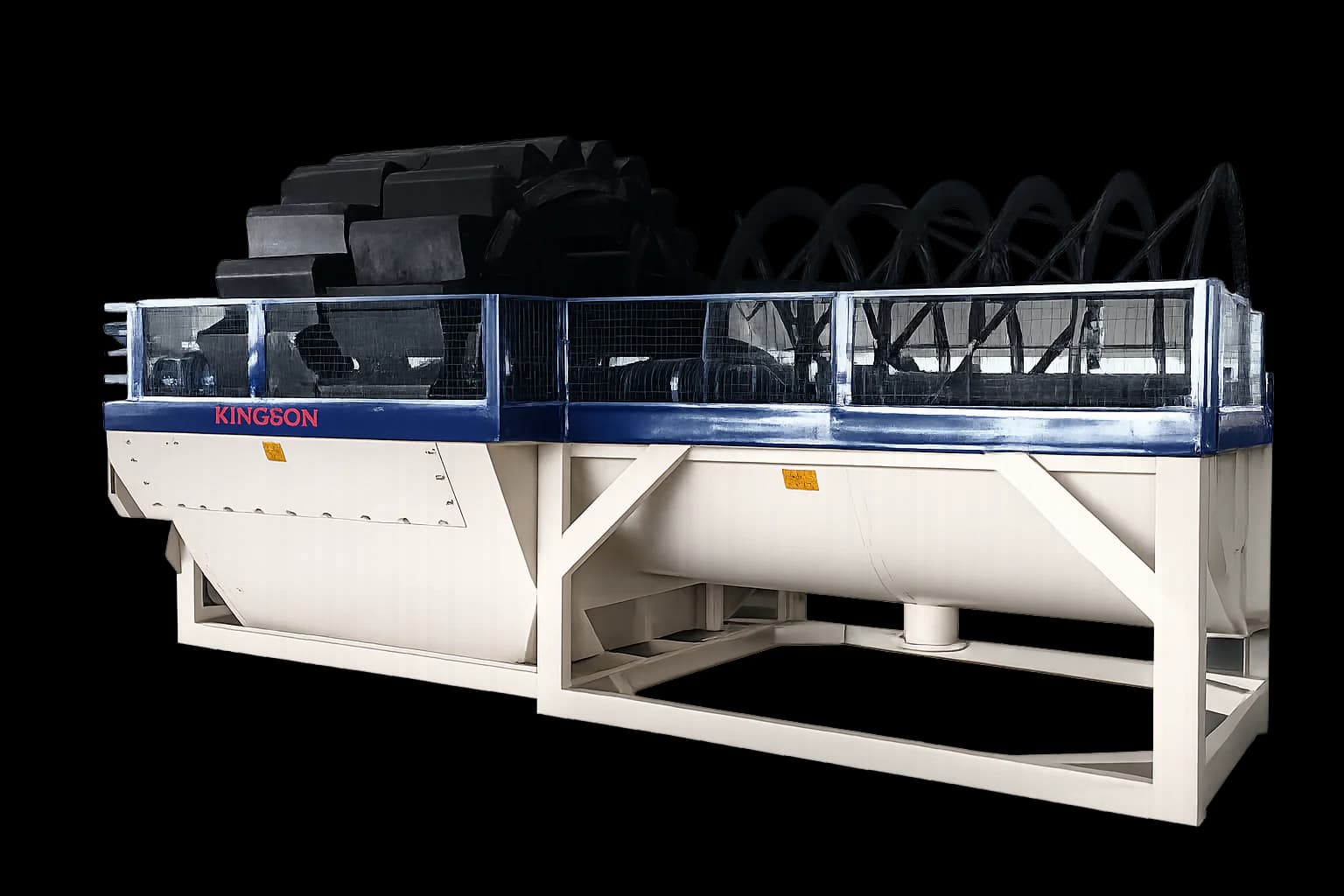

Sand Washers use pressure hydraulic separation with water as the medium to clean and organise sand particles by weight. Bigger particles weigh more, sink and are gathered in the base of the trough. The sand particles are transported to the slanted release end by a double pitched steel spiral shaft with replaceable cast wear shoes. The lighter undesirable particles float to the surface of the claim settling pool and are released over the weirs. Dewatering happens as the winding shaft transports the settled sand up to the grade of the trough and is released.
Core Design Highlights & Mechanisms:

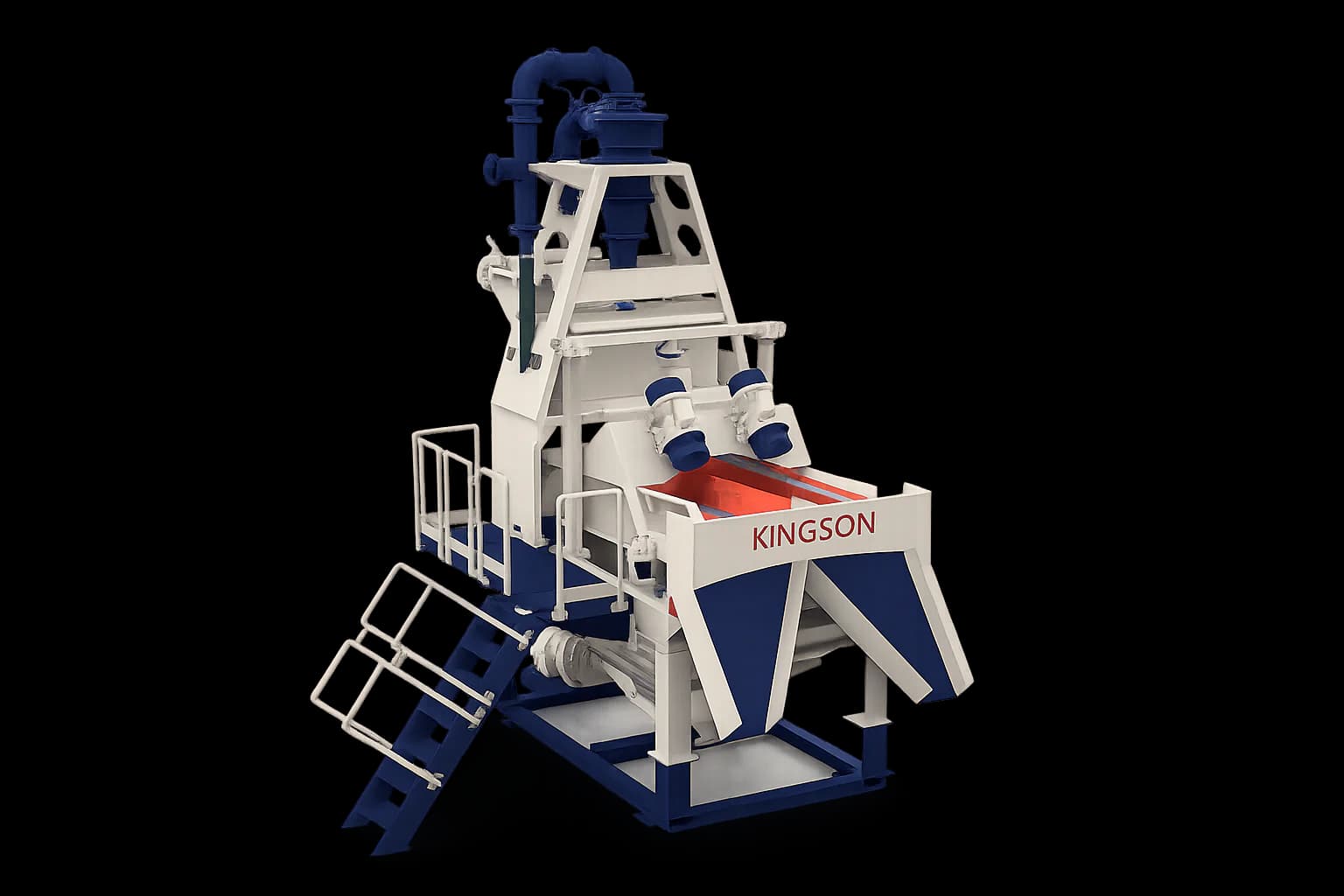

Sand Washer
Rotate 360° • Zoom • Inspect
VERSATILE INDUSTRIAL OPERATING ENVIRONMENTS
Designed to operate under extreme crushing forces across diverse mineral processing sectors.
ON-SITE INSPECTION & WORKING VIDEO
MACHINE SPECIFICATIONS & TONNAGE CHART
Detailed dimensional, power, and capacity metrics for model selection.
| S.No | Model | Wheel Diameter (Mtr) | Number of Bucket | Maximum Feed Size | Machine Tank Capacity (Kgs) | Water Tank Capacity | Motor Power | Capacity (TPH) |
|---|---|---|---|---|---|---|---|---|
| • Technical Specifications | ||||||||
| 1 | KSW 50 | 2.27 | 34 | <8 | 3500 | 4500 | 5.5KW | 40-55 |
| 2 | KSW 100 | 2.50 | 38 | <8 | 5000 | 5000 | 7.5KW | 55-75 |
| 3 | KSW 150 | 2.75 | 42 | <8 | 7000 | 6000 | 11KW | 75-110 |
| 4 | KSW 200 | 3.10 | 48 | <8 | 8200 | 15000 | 15KW | 110-150 |
