Crushers • Cone Crusher

Cone Crusher

Engineered for Maximum Tonnage • Built to Last

Heavy-duty industrial crushing and material handling system designed for high reduction ratios, maximum continuous uptime, and reliable operating efficiency in extreme quarry conditions.

Class: Cone CrusherHeavy Steel BodyContinuous Lubrication

500 TPH Capacity

High Reduction

Mn Steel Jaw

Reinforced Chassis

Auto Oil Pump

Low Maintenance

Heavy Crushing

High Reduction

• Optimal Efficiency

Structural Body

Certified Steel

• Reinforced Chassis

Maintenance

Enclosed System

• Minimal Wear

Plant Tonnage

High Output

• Max TPH Capacity

EQUIPMENT NARRATIVE • OVERVIEW

ENGINEERED FOR PRECISION, CONTINUOUS TONNAGE & HEAVY DUTY LIFE

Mewar Hi-tech is proud to reveal that it is one of the top Cone Crusher manufacturers providing the highest grade machinery for the crushing of feed materials. We don't simply concentrate on helping our clients in getting their ideal outcomes yet additionally on making the procedure progressively solid, financially savvy, and flexible. Along these lines, we resolve to give you the most lucrative outcome.

Core Design Highlights & Mechanisms:

Higher crushing ratio and production efficiency result in lower spare part consumption and lower operating cost.

Easy maintenance from top reduces downtime. Improved cavity architecture helps in feed opening maintenance.

The tangential and radial forces result in uniform pressure and product of uniform shape.

Thin oil lubrication increases the life of consumable parts.

3D InteractiveCone Crusher

Cone Crusher

Rotate 360° • Zoom • Inspect

TARGET OPERATIONS • APPLICATIONS

VERSATILE INDUSTRIAL OPERATING ENVIRONMENTS

Designed to operate under extreme crushing forces across diverse mineral processing sectors.

Mining & Ore Extraction

Primary & secondary reduction of hard iron ore, copper, bauxite, and gold deposits.

Hard Rock Quarrying

High-tonnage crushing of granite, basalt, limestone, and river gravel.

Infrastructure & Roads

Producing precise cubical aggregates for high-grade highway & asphalt mixtures.

Aggregate Processing

Manufactured sand (M-Sand) and washed fines sizing for ready-mix concrete plants.

Recycling & Demolition

Processing concrete debris, asphalt pavement, and industrial slag for reuse.

Custom Plant Setup?

Our team provides custom engineering flowsheet designs for complete circuit integration.

VISUAL MEDIA • TECHNICAL ASSETS

ON-SITE INSPECTION & WORKING VIDEO

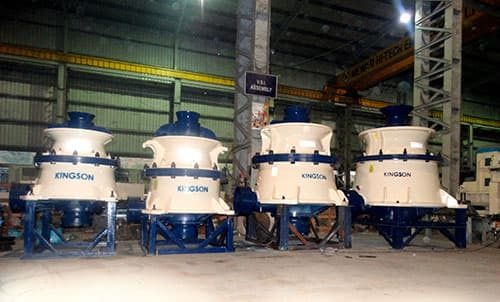

Machine Gallery & Diagrams

Click image to view full resolution

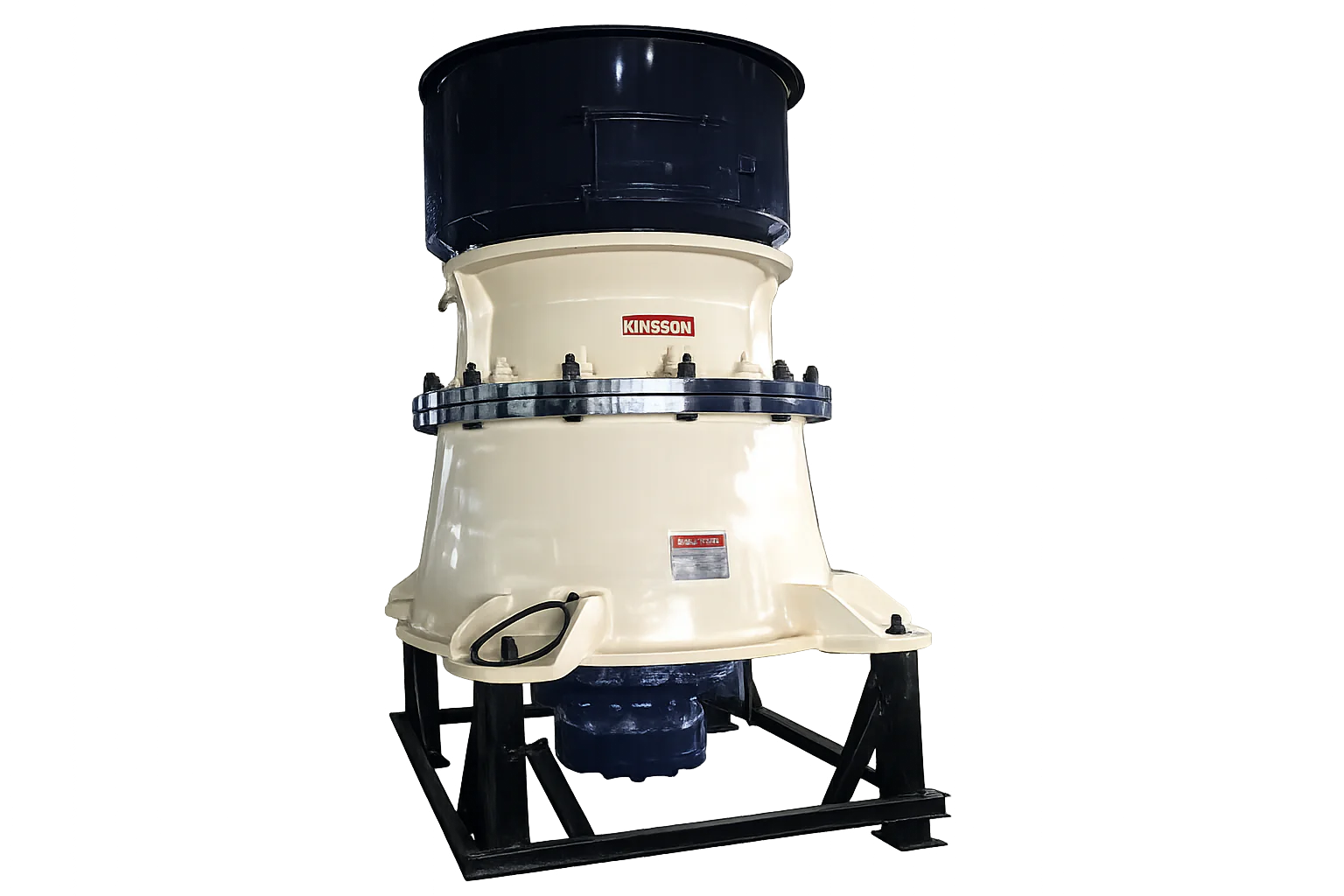

Mewar Hi-Tech Cone Crusher - Heavy duty crushing and aggregate processing equipment (Image 1)

Open Lightbox

Operational Video Footage

LIVE FOOTAGE

ENGINEERING MATRIX • TECHNICAL DATA

MACHINE SPECIFICATIONS & TONNAGE CHART

Detailed dimensional, power, and capacity metrics for model selection.

S.No	Model	Product Type	Rec. Feed (mm)	Rec. Feed (Inch)	CSS setting in MM (Capacity TPH)	RPM	Power (HP)	Weight (Tons)
• Technical Specifications
1	KCC 750	FINE	50	2.0	6: 16-20 \| 8: 18-25 \| 10: 25-30	375-400	100	8.0
		COARSE	80	3.2	15: 30-40 \| 20: 40-50 \| 25: 50-60	250-325	100	8.0
2	KCC 750 N	FINE	60	2.4	8: 20-30 \| 10: 30-40 \| 15: 45-65	325-400	120	8.0
		COARSE	140	5.6	20: 45-55 \| 25: 60-70 \| 30: 75-100 \| 40: 90-120 \| 50: 120-150	200-285	120	8.0
3	KCC 900	FINE	60	2.4	8: 30-40 \| 10: 40-55 \| 15: 50-80	325-400	175	11.0
		COARSE	180	7.2	20: 60-75 \| 25: 80-100 \| 30: 100-125 \| 40: 125-150 \| 50: 160-200	250-325	175	11.0
4	KCC 1000	FINE	60	2.4	8: 40-60 \| 10: 55-75 \| 15: 70-90	325-400	215	13.0
		COARSE	220	8.8	20: 75-90 \| 25: 100-125 \| 30: 125-150 \| 40: 150-180 \| 50: 200-240	250-325	215	13.0
5	KCC 1200	FINE	60	2.4	8: 50-70 \| 10: 70-90 \| 15: 90-110	325-400	265	16.0
		COARSE	220	8.8	20: 90-110 \| 25: 120-150 \| 30: 150-180 \| 40: 180-220 \| 50: 240-290	250-325	265	16.0

TECHNICAL DOCUMENTATION

DOWNLOAD PRODUCT BROCHURES & LAYOUTS

Official Product Catalog

Complete brochure with dimension diagrams, capacity formulas, and CSS settings.

Technical Data Sheet

Engineering tolerances, lubrication schedules, and power requirement matrix.

Civil Foundation Layouts

Detailed AutoCAD diagrams for base foundations and anchor bolt placements.

DIRECT FACTORY QUOTE REQUEST

REQUEST PRICING & CUSTOM FLOWSHEET DESIGN

Interested in integrating the Cone Crusher into your crushing plant? Submit your application requirements below.

Instant Technical Consultation

Direct support on Closed Side Settings (CSS) and capacity selection.

Direct Factory Support

Call us directly at +91 9001113333 or email sales@kingsoncrusher.com

ISO 9001 Quality & Warranty

Full OEM factory warranty & 24/7 technical dispatch for circuit integration.

Technical Enquiry

Equipment Spec & Price Request

PRODUCT PORTFOLIO

RELATED HEAVY EQUIPMENT

Explore Full Catalog

Crushers

Jaw Crusher

Heavy-duty industrial crushing and material handling system designed for high reduction ratios, maximum continuous uptime, and reliable operating efficiency in extreme quarry conditions. Mewar Hi-Tech is a credible and trustworthy brand known for its high quality and great manufacturing. We also acquired experience over the years in the manufacture of jaw crusher, which is commonly used in mining, quarry and material handling. Mewar Hi-Tech's Jaw Crusher has a longer life as compared to the jaw plates of other crushers, in light of the fact that Mewar Hi-Tech's Jaw Crusher operates on the 'Crushing without Rubbing' concept. Also, automatic continuous spray lubrication is provided by coupling pump / vertical oil pump on the basis of toggle-pitman mechanism which enables the crusher to run safely.

View Specifications

Crushers

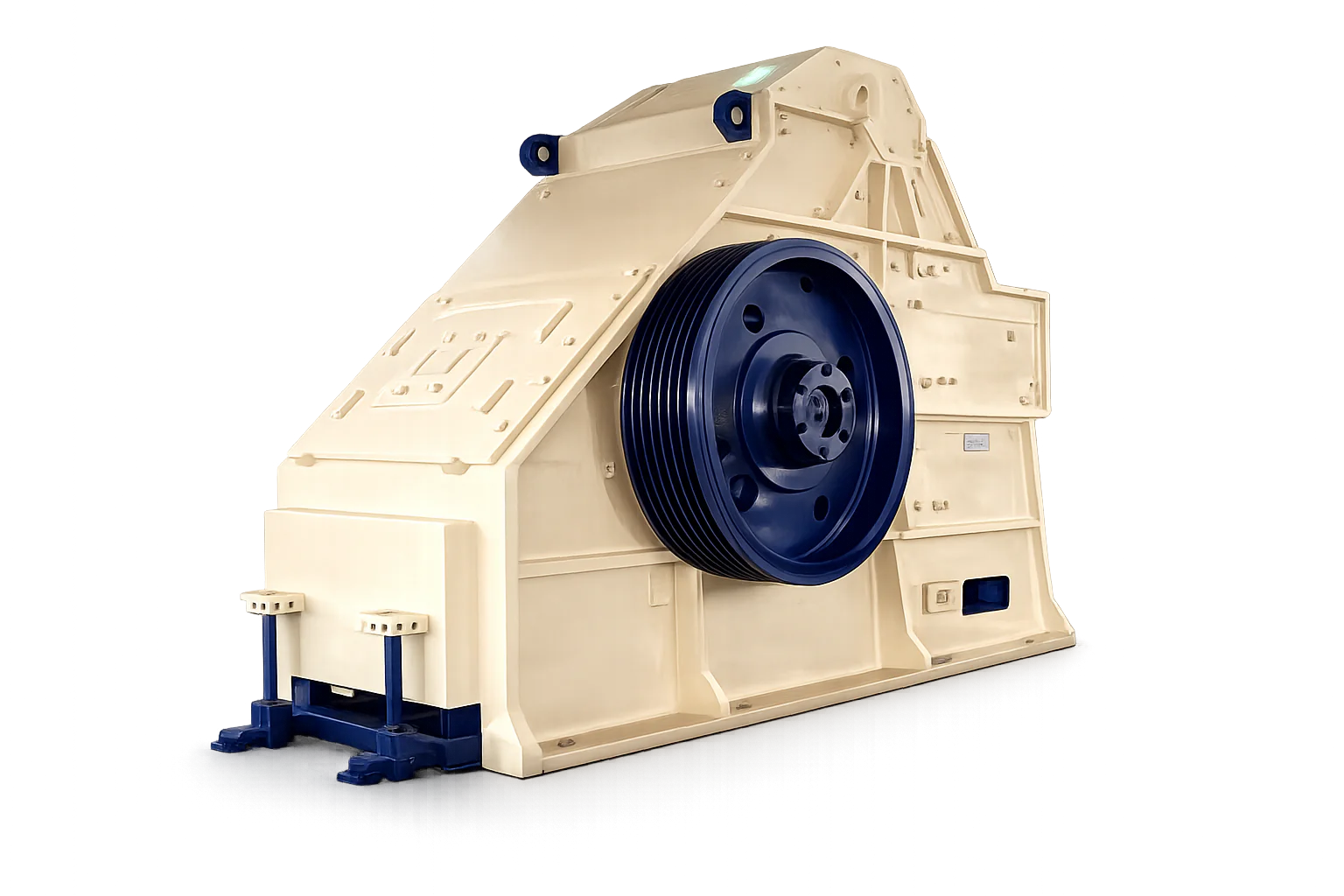

Double Toggle Oil Jaw Crusher

Mewar Hi-Tech is a credible and trustworthy brand known for its high quality and great manufacturing. We also acquired experience over the years in the manufacture of jaw crusher, which is commonly used in mining, quarry and material handling. Mewar Hi-Tech's Double Toggle Oil Lubricated Jaw Crusher has a longer life as compared to the jaw plates of other crushers, in light of the fact that Mewar Hi-Tech's Toggle Jaw Crusher operates on the 'Crushing without Rubbing' concept. Also, automatic continuous spray lubrication is provided by coupling pump / vertical oil pump on the basis of toggle-pitman mechanism which enables the crusher to run safely.

View Specifications

Crushers

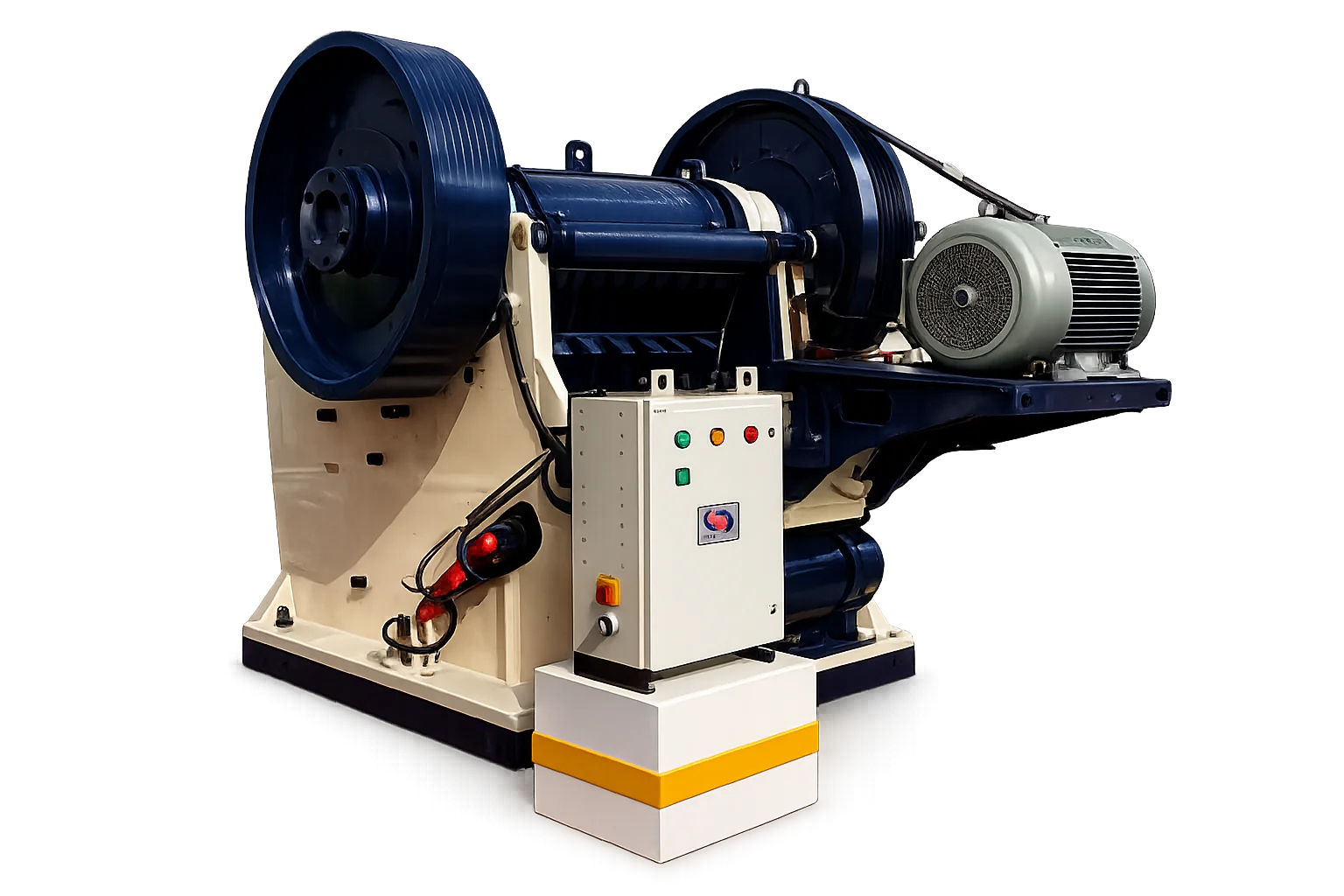

Single Toggle Grease Jaw Crusher
